Product Description
XB4 series are suitable to industrial control circuit with AC 50 Hz or 60Hz,0-380V rated voltage and 0-220V DC operating voltage, used for the control of magnetic starter, contactor, relay and other electric circuit.
Structure The switch unit slow-break and self-cleaning. It uses modular combustion mode and you can combine from one to eight switch units optional, so can make the product meet requirement of many special control circuits. It can be connected more safely and installed firmly. Economical plastic type can be used in acid environment. Protective Degree The standard is IP40 and some types can reach IP67 with the seal cover.
Technical Specification:
- Operating temperature:-25C-55C(no freezing)The average value in 24 hrs no more than+35℃
- Operating humidity:45~85%rh; 45~85%rh(no condensation)
- Contact resistance: ≤30mΩ
- Insulation resistance: ≥100M
- The highest Dielectric streagth:3000VAc50hz
- Vibration resistance: 50hz,Amplitude1.0mm
- Shock resistance: >10g
- Life---Mechanical: Momentary:>2000000 times: alternate, selector>1000000 times: key-lock, emergency>1000000 times
- Life---Electrical: >500000tmes
- Terminal: Screw terminal, connecting ability:min:1x0.5mm2 max:1x2. 5mm2 or 2x1.5 mm2(with or without connecting link)
- Operation: 80gf-2200gf,according to the quantity of switch units Operation travel: About 5. 5mmm (For push button type)
- Pollution Degree: 3 degree
Switch Rating:
|
Ui Nominal Insulation Voltage(Ui)
|
440V
|
|
Thermal Current(Ith)
|
10A Temperature no more than rated current
|
|
Rated Voltage(V)
|
24V
|
48V
|
110V
|
220V
|
380V
|
500V
|
|
Working Current
|
AC
50/60Hz
|
AC-12
|
10A
|
10A
|
10A
|
6A
|
6A
|
6A
|
|
AC-15
|
10A
|
10A
|
6A
|
3A
|
1.8A
|
1.4A
|
|
DC
|
DC-12
|
8A
|
4A
|
2.2A
|
1.1A
|
1.1A
|
1.1A
|
|
DC-13
|
4A
|
2A
|
1.1A
|
0.6A
|
0.6A
|
0.6A
|
|
Contact Material
|
Silver Alloy
|

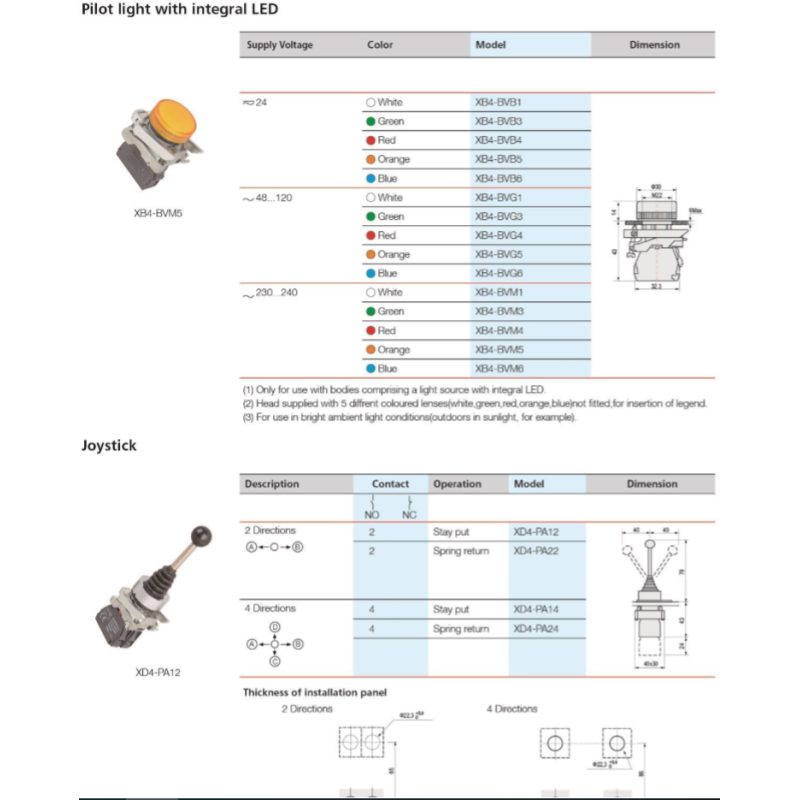

Lamp Specifications:
|
Power Type
|
AC/DC LED Light-emitting diodes
|
|
Rated Voltage
|
AC/DC 6V
|
AC/DC 12V
|
AC/DC 24V
|
|
AC 110V
|
AC 220V
|
AC 380V
|
|
Lamp Life
|
40,000 Hours
|
|
Lamp Color
|
R/G/Y/W/B/b
|
The Installation Hole Size:
Model Specification:
Contact Structure:
10 ---1NO;
01 ---1NC;
11 ---1NO1NC;
22 ---2NO2NC;
33 ---3NO3NC;
44 ---4NO4NC;
Normal Closed and Normal open can be combined at will;

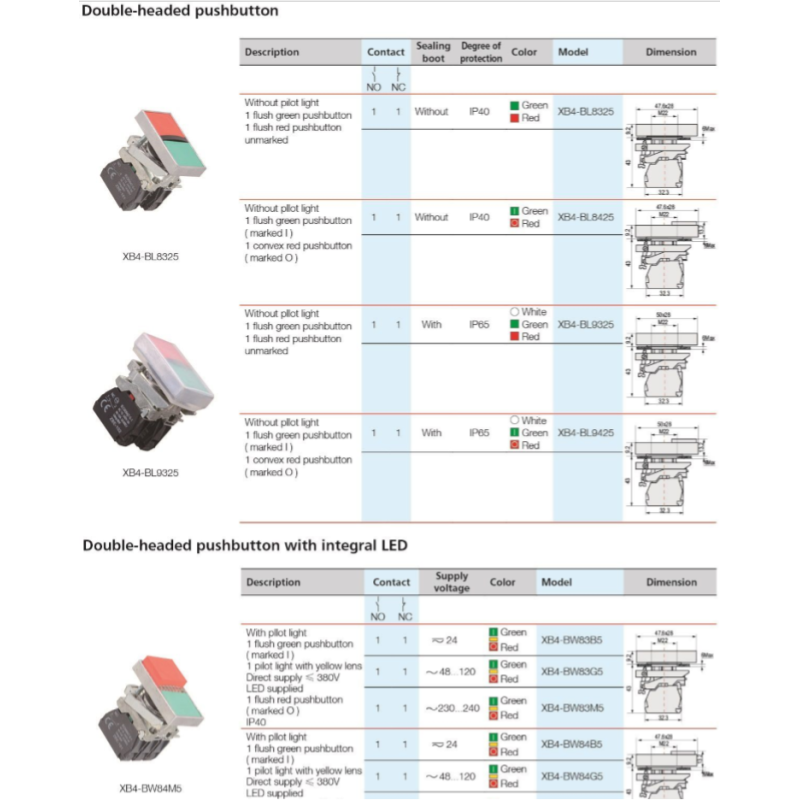

Operating Type:
GN ---Momentary high type
BN --- Momentary flat type
BNZS ---Alternate type

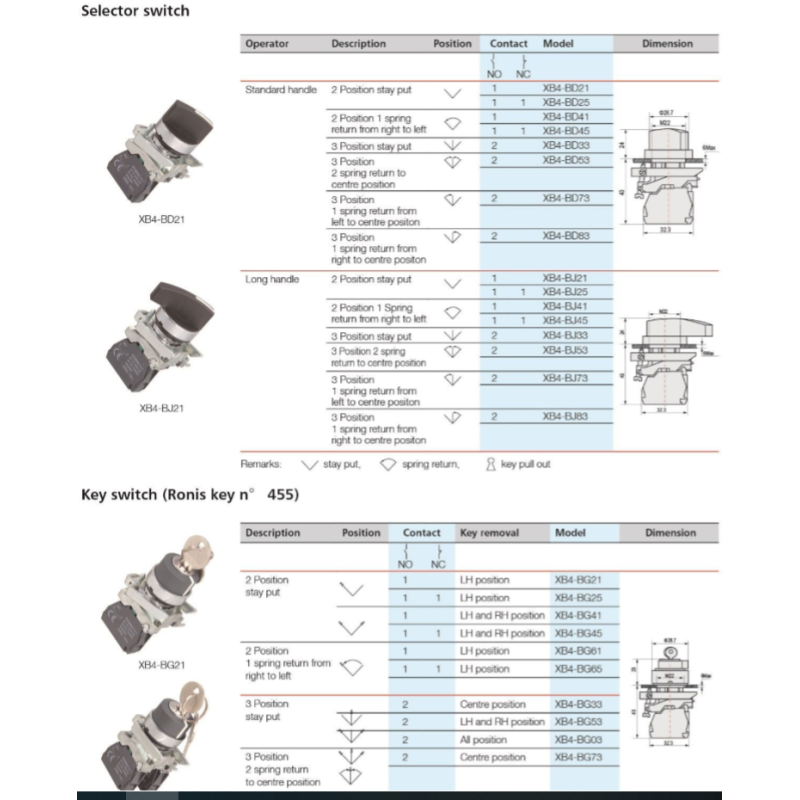

X ---Selector Switch
XB ---Lever Switch
Y ---Key-Lock type
M --- Momentary type
ZS ---Emergency Type
DN ---llluminated Type
DNZS --- llluminated alternate Type
Express selector and key-lock operation position:
21 ---Two Position maintain type
22 ---Two Position momentary type
31 ---Three Position maintain type
33 ---Three Position momentary type
Color: Red/Green/Yellow/White/Blue/black
Protective degree: FP IP67; No letter means IP40
Normal working conditions:
