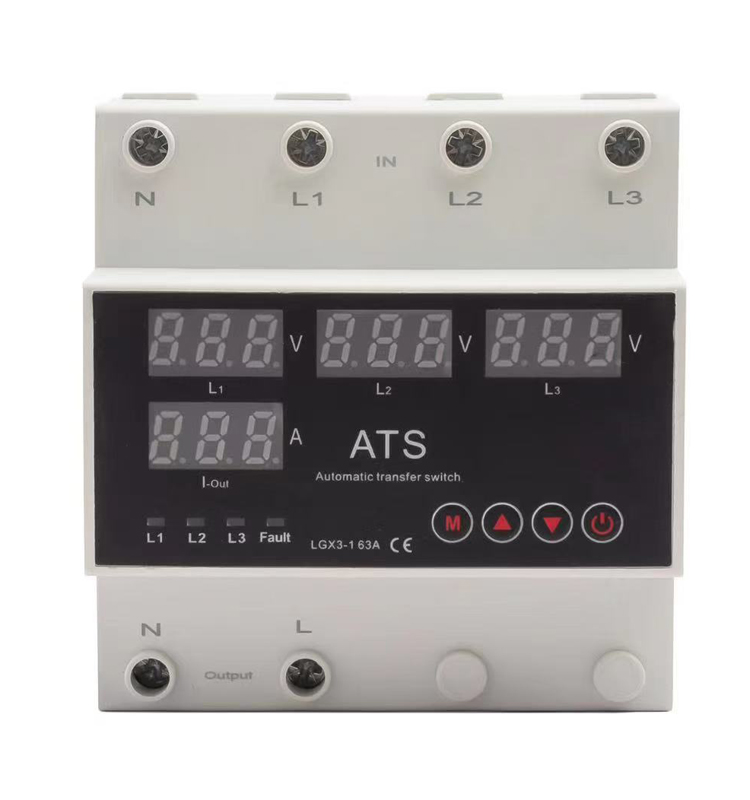

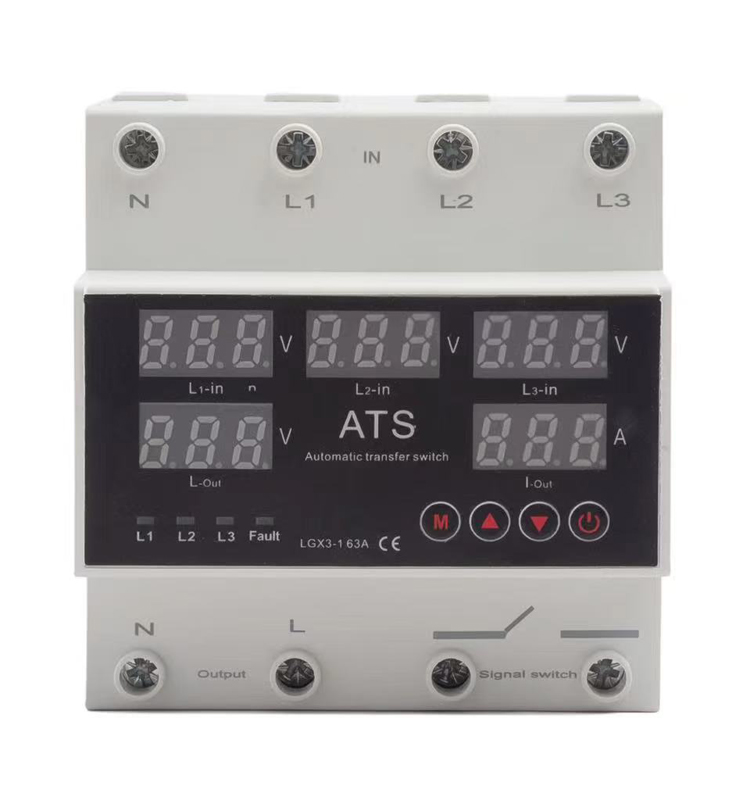

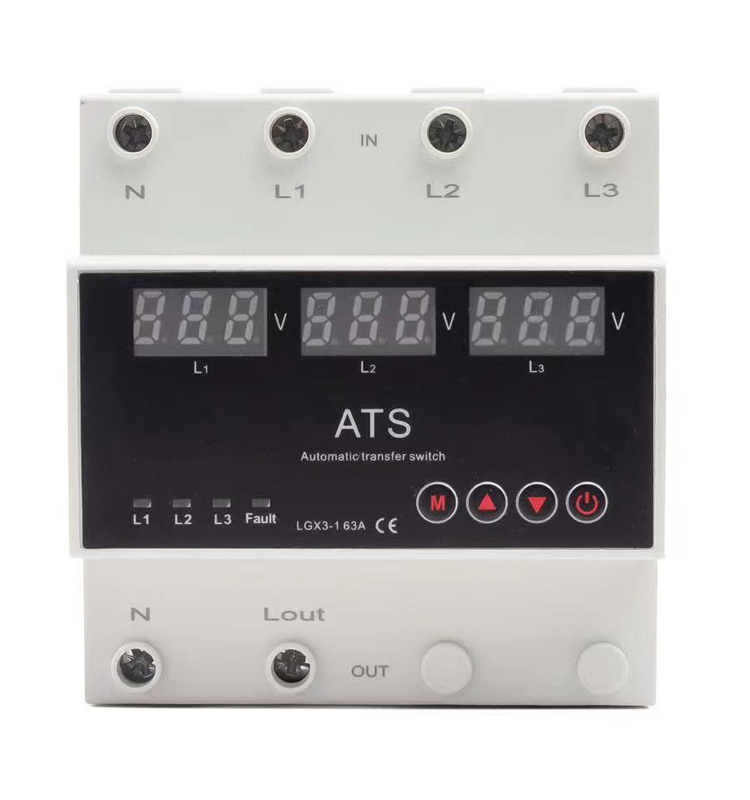

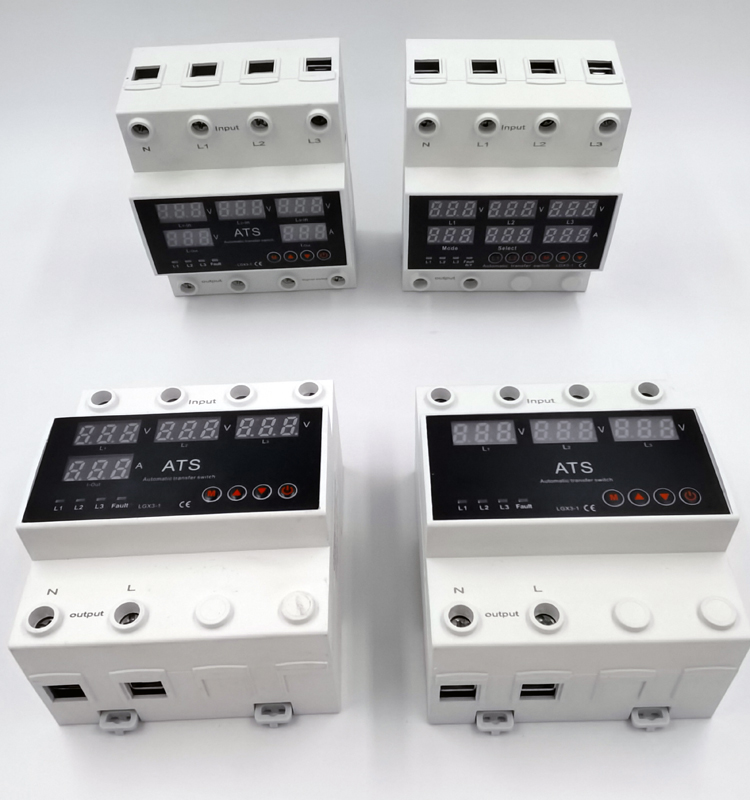

Automatic Transfer Switch 5 Display ATS Over/Undervoltage Overcurrent Protector 63A 80A 100A Three-Way Power Supply CB Type
Premium Products
Automatic Transfer Switch 5 Display ATS Over/Undervoltage Overcurrent Protector 63A 80A 100A Three-Way Power Supply CB Type
1
2
3
4
5
6
Rated voltage :AC 3*220V(N-L1/L2/L3)
MOQ :500 pieces
Place of Origin :Zhejiang, China
Operation type :Automatic Conversion
Auto-reclosing delay(Ton) :1-600s
Model Number :LGX3-1 63A
Product name :Automatic Transfer Switch
Umin setting range :140-210V
Return delay to priority phase :1-600s
Number of Pole :4
Rated Current :63A/80A/100A
Brand Name :OEM
Frame Current :63 A, 100A
Application :Industrial Power
Type :Coated Back Paper
Umax setting range :230-300V
Max.Operating phase voltage :350V
Max. Current :100A
Voltage accuracy :<1%
Phase :Three Phase
Price :$13.71 / piece
Contact Now
Product Description
Intelligent Automatic Transfer Switch is designed to supply an single phase 220V load from different power supply, in order to maintain uninterrupted power supply of essential single phase load. According to voltage presence &voltage quality on phases, it will automatically select the optimum power supply and switch the single phase load supply to it.
1.Over-voltage protection 2.Under-voltage protection 3.Over-current protection 5.Voltage display(voltage measurement) 6.Current display (current measurement) 7. Voltage calibration: Voltage +-9.5% adjustable. 8. Current calibration: Current +- 9.5% adjustable
Main Function:
When Current Power Supply is Over/Under Voltage or Stop, the Phase Transfer Switch will transfer to another power supply automatically.It can cut off the power supply instantaneously when the line has over current faulty, so as to protect the electrical equipment from being damaged.
Advantage: The Automatic Transfer Switch can setting which power resource is Priority. When Priority Phase Recovery to Normal Voltage, the Phase Transfer Switch will Change Back to Priority Power Resource. A-B-C, A-C-B, B-A-C, B-A-C, C-A-B, C-B-A; EXCLUSIVE DESIGN 63A 100A triple power triple lines electronic type automatic changeover switch with over-under-voltage protection...
Specification:
Supply terminals
N,L1,L2,L3
Rated supply voltage
AC 3 * 220V(N-L1/L2/L3)
Rated frequency
40/50/60/70Hz
Umax setting range
230-300V
Umin setting range
140-210V
Auto-reclosing delay(Ton)
1-600s
Return delay to priority phase
1-600s
Switch delay to reserve phases
<0.2s
Voltage hysteresis
5V
Overvoltage trip delay
0.1s; ≥350V: 0.02s
Undervoltage trip delay
0.1s; ≥350V: 0.02s
Voltage accuracy
<1%
Max. operating phase voltage
350V
Rated operating current
63A/80A/100A
Max. operating current
80A/90A/100A
Pollution degree
3
Electrical life
105
Mechanical life
105
Altitude
≤2000m
Ambient temperature
-25℃~+50℃
Permissable relative humidity
≤50% at 40℃(without condensation)
Storage temperature
-25℃~+55℃
Conductor size
0. 5mm2~1mm2
