Adjustable 220V AC Single Phase 63A Voltage Protector LED Display Copper PC Material Din Rail Type 1s-90s Time Delay Recovery

Place of Origin : Zhejiang, China

MOQ : 1000 pieces

Frequency : 50/60 Hz

Warranty : 1 Year

Certificate : CE / ISO9001

Type : Automatic Voltage Regulator

Rated voltage : 220V/230VAC

Phase : Single Phase

Brand Name : OEM

Current Type : AC

Under-Voltage Protector : 140~210V AC

Price : $2.15 / piece

Capacity : 0.5 kVA

Product Name : Over and Under Voltage Protector

Efficiency : 0.99

Material : PC, Copper

Protection : Overloading Protection, Undervoltage Protection, Under/Over Voltage

Model Number : MEH-V1-Protector

Usage : Household

Display : LED

Display Type : Digital Display

Time delay for recovery : 1-90S

Rated Current : 1A-63A Adjustable (default 40A)

Over-Voltage Protector : 230~300V AC

Contact Now

230V AC Single Phase Adjustable Over and Under Voltage Protector with Over Current Protection Din rail mounting LED display

Product Description

Functions:
1.Over-voltage protection

2.Under-voltage protection

3.Over-current protection

4.Automatic recovery

5.Voltage display(voltage measurement)

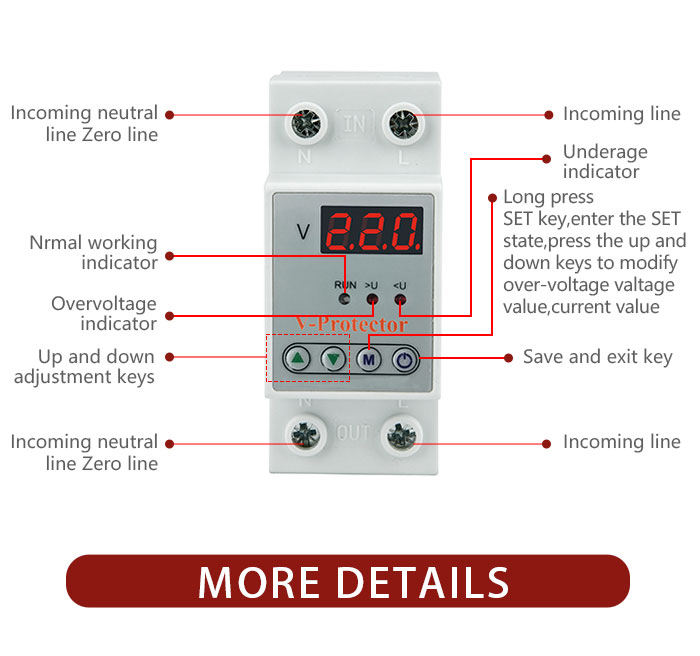

6. Voltage calibration: Voltage +-10% adjustable. A13

7. Restore factory settings: press the down button for more than 12s

8. Fault inquiry: Press the UP button from more than 12S

Product Parameters:
1.Model number:MEH-V-Protector

2.Power supply:230VAC 50/60Hz

3.Max.Loading power:1~40A Adjustable(default:40A); 1~63A Adjustable(default:63A)

4.Over-voltage protection value range:230V~300~OFF(default:270V):

Over-voltage recovery voltage range:225V--295V(default:250V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage r ecovery delay time:1s~500s(default:30s)

5.Under-voltage protection value range:140V--210V --OFF(default:170V):

Under-voltage recovery voltage range:145V--215V (default:190V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltage r ecovery delay time:1s~500s(default:30s)

6.Power-on delay time:1s~90s(default:10s)

7.Power consumption : <2W

9.Electric machinery life : 100,000 times

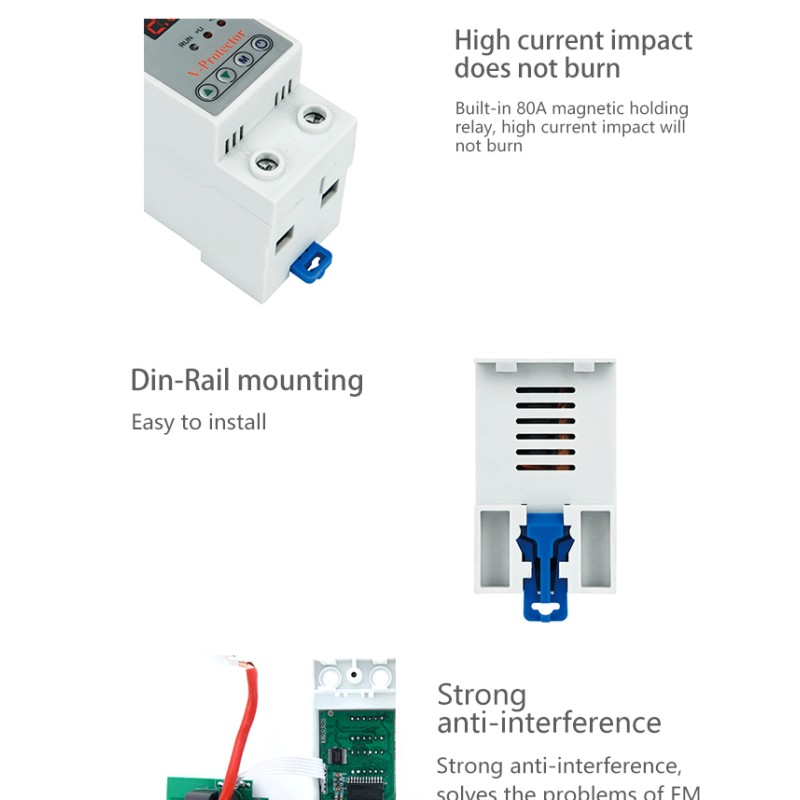

9.Installation:35mm DIN rail

Adjustable 220V AC Single Phase 63A Voltage Protector LED Display Copper PC Material Din Rail Type 1s-90s Time Delay Recovery

Technical parameters:


Rated supply voltage	AC 220/230V
Operation Voltage Range	AC 80v~400V (1 Phase)
Rated Frequency	50/60Hz
Electric Current(>A) setting range	1~63A
Over Voltage(>U) setting range	230~300V AC
Under Voltage(<U) setting range	140~210V AC
Error	2%
>U and <U trip delay	0.5S
Reset/start delay	1s~90s
Voltage measurement accuracy	1%
Rated insulation voltage	400V
Output Contact	1NO
Protection degree	IP20
Pollution degree	3
Altiude	<=2000m
Operating Temperature	-50°C~55°C
Humidity	<=50% at 40°C
Storage Temperature	-30°C~70°C

Default Setting:

Technical parameter	Setting range	Step	Factory setting
Over Voltage trip value	230~300V	1V	280V
Under Voltage trip value	140~210V	1V	160V
Over Current trip value	1~63A	1A	20A
Reset/start delay	1s~600s	1s	5s

Current Specification	15A	25A	32A	50A	63A
Rated operating current(ln,A)	15	25	32	50	63
Maximum operating current lmax(A,Within 10 Min)	25	30	40	60	80
Max.power of load((KW)	3.6	5.5	7	11	13.9

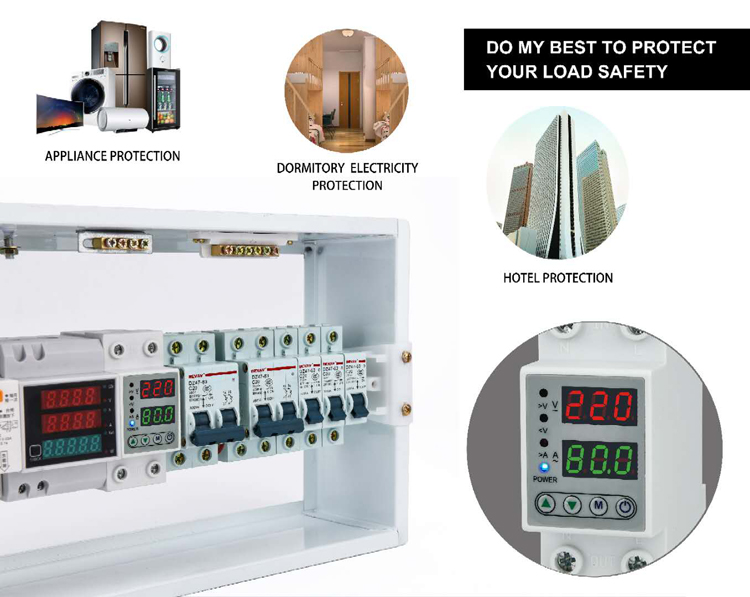

Application Scenarios:
