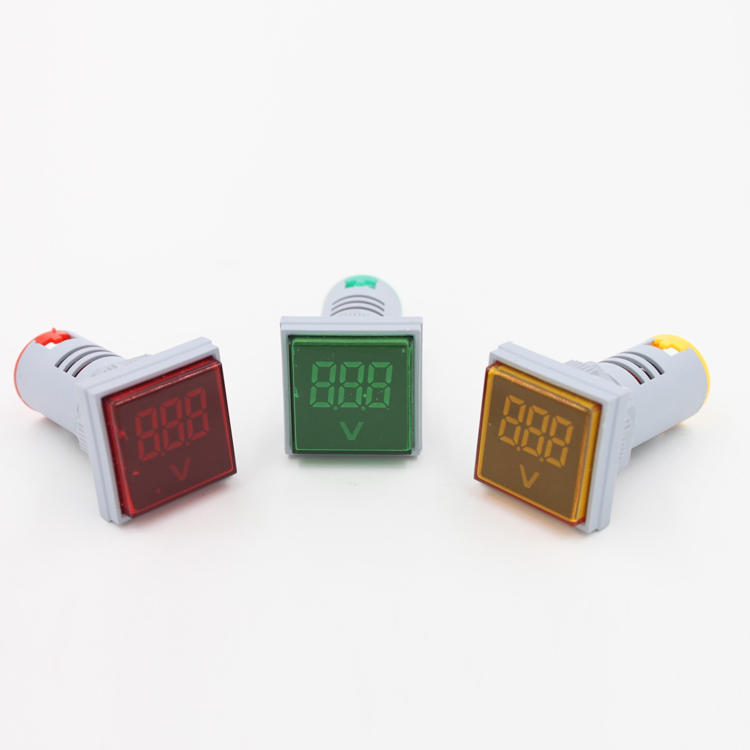

High Quality 22mm Mini Digital Voltmeter Single Phase Indicator Lamp Square Voltmeter Light 220V Voltage Meter

Max. Ac Voltage : 500V AC

Place of Origin : Zhejiang, China

IP Level : IP53

Power Source : 220V AC

Type : Panel Ammeter

Display Type : Digital Only

Parameters Measured : AC Voltage, DC Voltage

Terminals : Screw Terminals

Brand Name : MEH

The Voltage fluctuation : +-20%(Above 110V)

Measuring Range : AC 60-500V

Material : ABS, ABS

Brightness : >=100cd/m2

MOQ : 5000 pieces

Price : $0.75 / piece

Accuracy Class : 0.5

Model Number : AD16-22DSV

Operating Temperature : -25℃~65℃

Working Life : >=30000 Hours

Usage Frequency : 50~60Hz

Rated Operating Current : <=20mA

Light Color : Red,Green,yellow,White,blue

Max. DC Voltage : 100V

Application : Voltage Measurement

Feature : Led Display

Phase : Single Phase

Dimensions : 22*50.5mm(0.87*1.99in)

Usage : Industrial Inspection

Contact Now

Mini digital AC Voltmeter Voltage Meter AD16-22D 50-500V AC

22mm LED Indicator Signal Warning Light Lamp with Red/Green/Yellow/Blue/White Color

Note:

1.we have 0-600V 60-500V AC voltmeter.
2.we accept Customized and samples.
3.we have all kinds of DC/AC voltmeter DC 0-30V-100V-300V 4.5-120V 2.5-30V 4.5-30V.

Main technical parameters:
1: Power rating: 0.5W
2: Digital display AC voltmeter + signal lamp
3: The display character is high 11mm
4: Shape size: reference picture size map
5: Aperture size: φ22mm
6: Measuring voltage range: AC50-500V(We have DC 6-100V AC 0-100A)
The actual measurement can reach AC50-500V
7: Working temperature: -25℃~+65℃
8: Air relative temperature≤98%
9.Color: Red Blue Yellow Green White
10.size:22*50.5mm

Product Name	22mm LED AC Voltage Indicator lamp
Model Number	AD16-22DFV
Display Type	LED Digital Only
Head Shape	Flat round or square
Mounting hole size	22mm
Measuring Range	AC50V-500V
Accuracy Class	±2% V
Supply Voltage	220V
Operating Temperature	-25℃~+65℃
Dimensions	29mm21mm56mm
Voltage Measuring Range	AC 50-500 V
Color	Red Green Yellow Blue White
Frequency compatibility range	50-60 HZ
Ampere Measuring Range	2% ± V
Customized support	OEM, ODM, OBM, Software reengineering

Similar Mini digital AC Voltmeter / Ammeter AD16-22D LED Indicator Signal Light Lamp:
